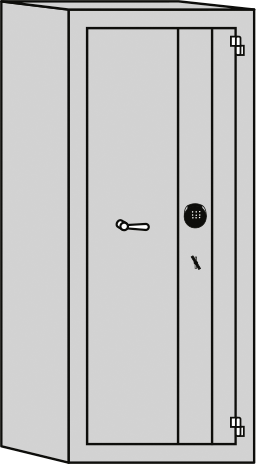

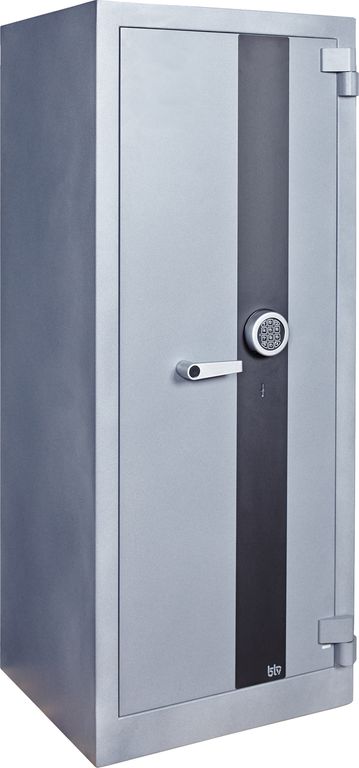

CARTAGO 150-E SAFE
Cod.
10155
Product details
Technical specifications
Replacements
EAN
8421461101556
Mod.
CARTAGO-150 E
External High (mm)
1500
Width outside (mm)
620
Outer bottom (mm)
540
High inside (mm)
1420
Inner width (mm)
540
Inner bottom (mm)
430
Number of shelves
5
L.
330
Kg.
450
Door thickness (mm)
10
Wall thickness (mm)
40
Closing system
Mechanical and electronic
Bolts
8 a 10 x Ø25 mm
Anchor holes
2 wall / x 1 floor - Ø22 mm
Colour
Metallic grey (RAL 7001)
Additional protection in the lock area
Manganese steel anti-drill plate
High security double bitted key VdS Class 1, EN 1300. No emergency key
Electronic lock with 2 user code and delayed opening programmable up to 99 minutes, with opening gap
Steel plate door
Door opening 180º
Body armouring made of vandal-proof high-resistance concrete
03165
BLANK KEY MAUER GRADE I IGNIS FIREPROOF CABINET (2 UNITS)
Download file
