CARTAGO

10151

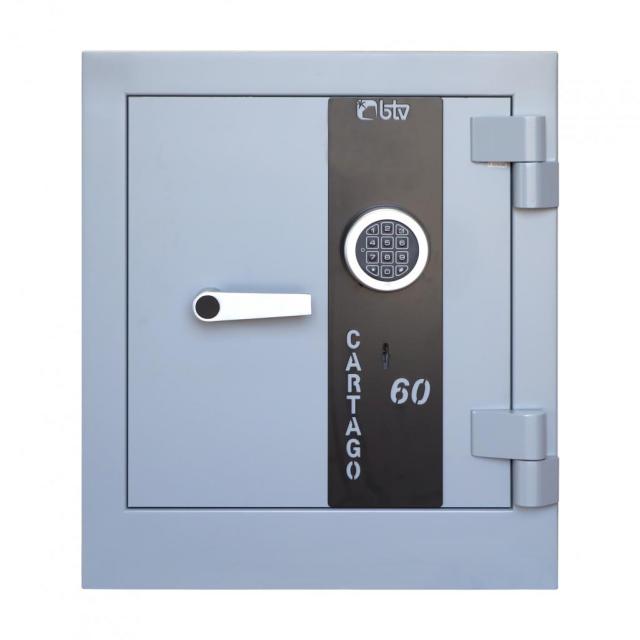

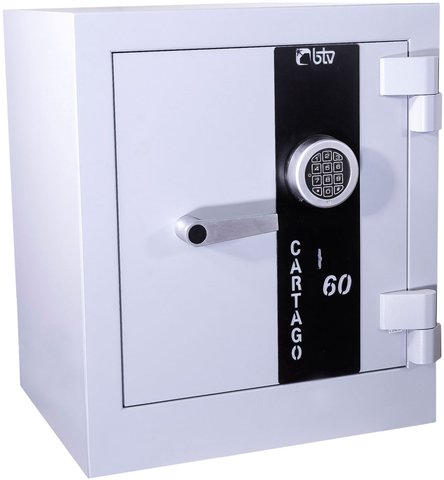

CARTAGO 60-E SAFE
Product details
  • High security safes.

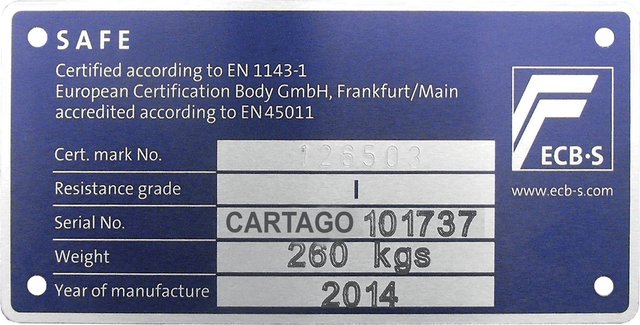

  • Grade I, certified by BTV.
  • Designed to meet professional and domestic needs.
  • Two different width sizes.
  • Door 10 mm thickness.
  • Body 40 mm thickness.
  • Models available with optional anti-fishing slot for depositing values without opening the door.
  • Metallic grey colour.

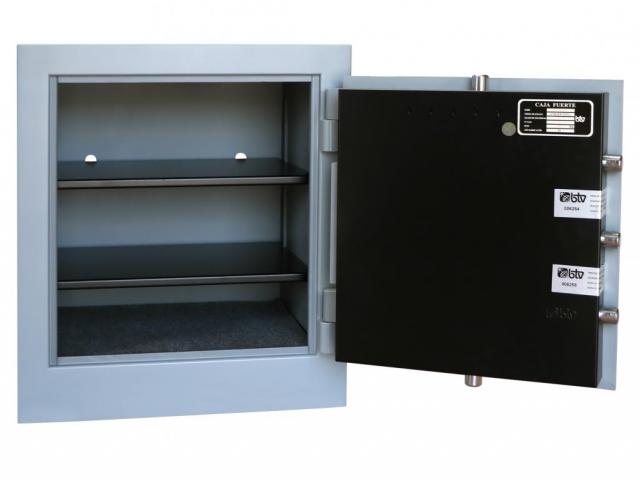

  • It has eight to ten bolts of 25 mm diameter.
  • Locking system according to the model, with lock with caps or with caps lock + electronic lock.
  • Additional protection in the lock area.
  • 180° door opening.
alt image 1623 en

Characteristics

alt image 2633 en
alt image 2634 en
alt image 2635 en
alt image 2636 en
alt image 2637 en

Optional

alt image 1611 en
DATE: 17/05/2025
btv.es
SAFES
HIGH SECURITY

CARTAGO

10151
CARTAGO 60-E SAFE
8421461101518
CARTAGO-60 E
general 60 E.png
600
520
440
520
440
330
2
75
160
Cod.
10151
alt image 1615 en
alt image 1618 en
alt image 10708 en
alt image 10709 en
alt image 10710 en
Technical specifications
Door thickness (mm)
10
Wall thickness (mm)
40
Closing system
Mechanical and electronic
Bolts
8 a 10 x Ø25 mm
Anchor holes
2 wall / x 1 floor - Ø22 mm
Colour
Metallic grey (RAL 7001)
Additional protection in the lock area
Manganese steel anti-drill plate
High security double bitted key VdS Class 1, EN 1300. No emergency key
Electronic lock with 2 user code and delayed opening programmable up to 99 minutes, with opening gap
Steel plate door
Door opening 180º
Body armouring made of vandal-proof high-resistance concrete
DATE: 17/05/2025
btv.es
SAFES
HIGH SECURITY

CARTAGO

10151
CARTAGO 60-E SAFE
Accessories
Cod.
Descripction
03071

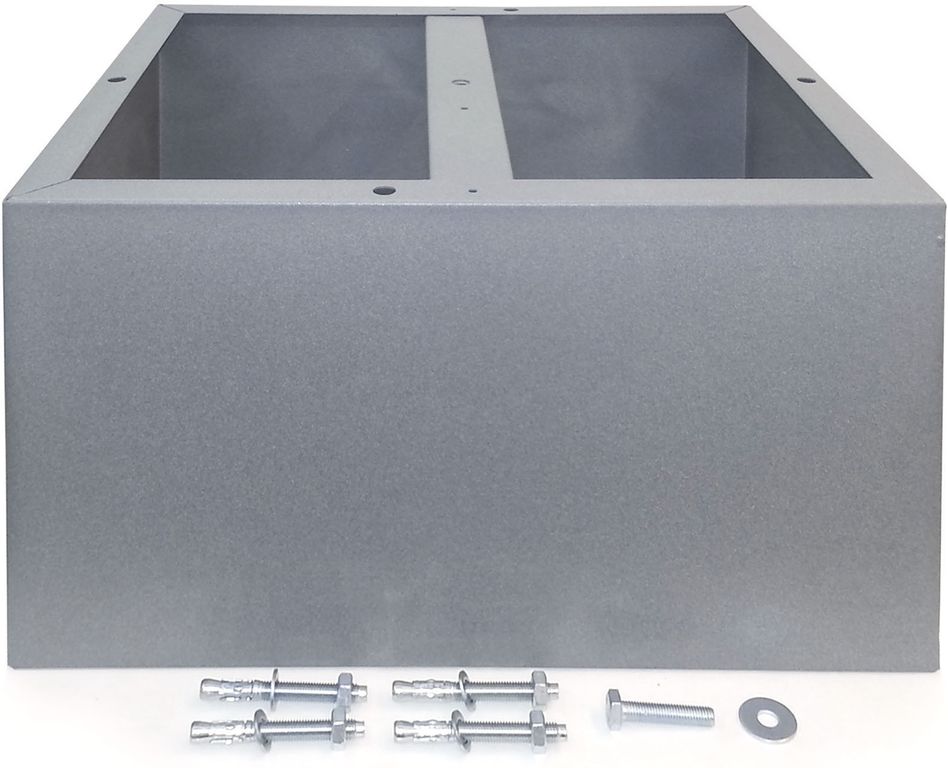

300 MM BASE CARTAGO SAFE SEIES 60, 80 AND 100
03165
BLANK KEY MAUER GRADE I IGNIS FIREPROOF CABINET (2 UNITS)
